Photograph Page

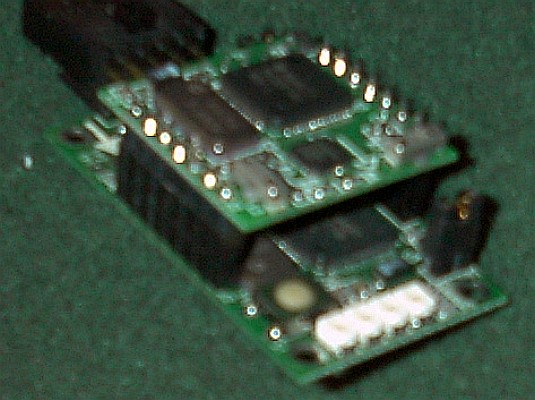

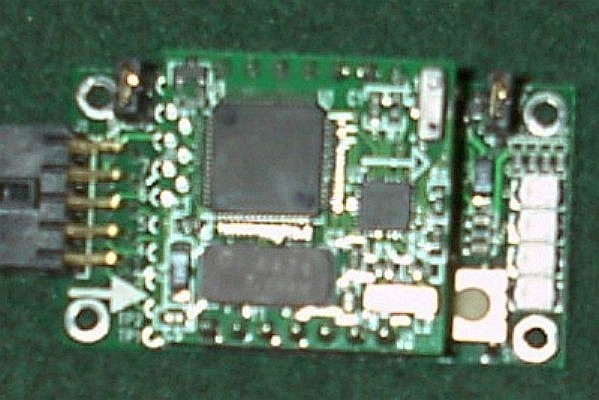

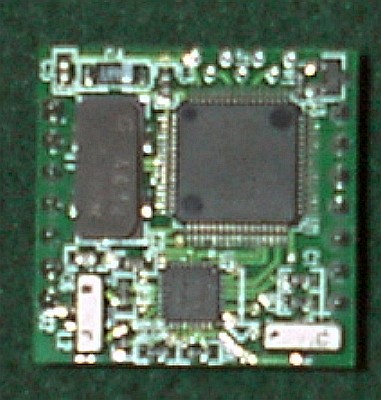

- This are a few pictures of the actual electronics I was working with. The first is a top view picture of the compass, the second a top view picture of the compass and CommBoard together, and the third a picture of the compass and CommBoard taken from an angle.

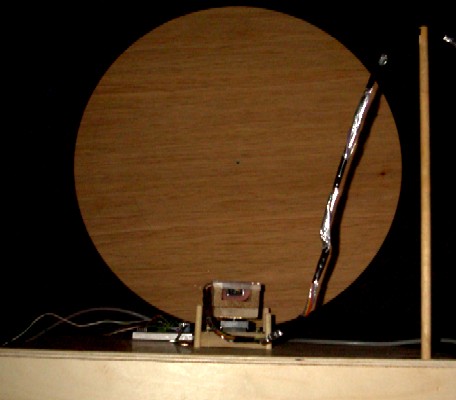

- This is a picture of the wheel setup I used to test the workings of the compass. You can't see the magnet attached to the wheel very well because it is hidden behind the compass.

Compass Initialization
Spinning Wheel

- The first file is a video in .wmv format of the initialization procedure of the compass. The second is in the same format, and shows the wheel spinning around. Not much to look at, but I thought I'd include the videos here anyhow.
