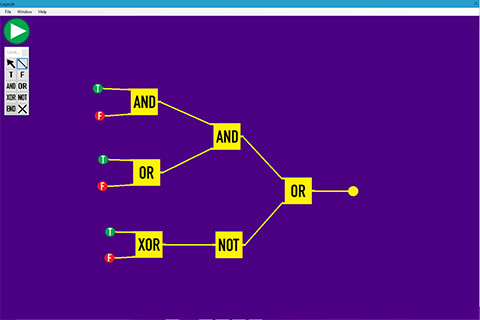

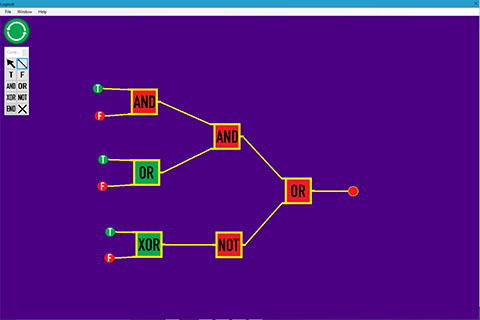

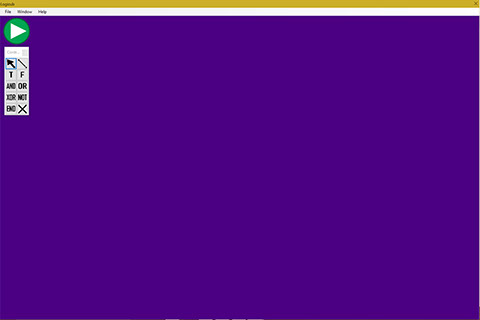

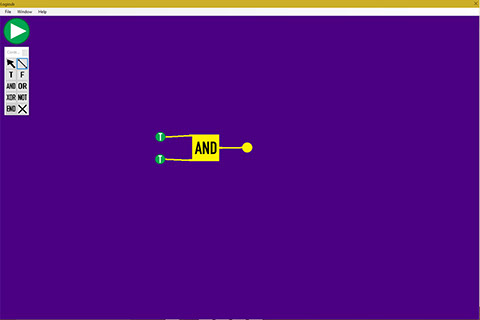

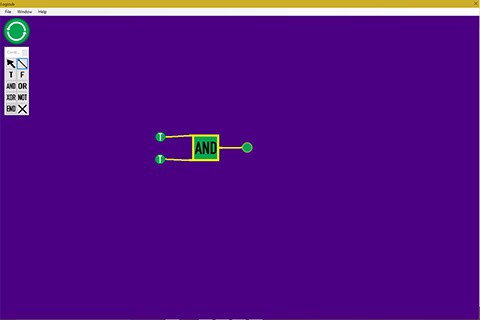

Logicub is a Visual Circuit Builder, created for the purpose of CSCI 460 and to be used as a learning tool for students studying the basics of Computer Programming. Within the program, users can compose their own Logic Circuits and physically see the outcome of each gate through their personalized circuit. Use the controls to add and delete various Logic Gates, such as True and False statements, as well as AND, OR, NOT, and XOR gates. Then connect them together using the Connector Tool. You can create both simple and complex structures and then run them by pressing the play button. Take a look below at some of the images of Logicub to get a better feel for what the program is like. Check out the Download page to find out more and obtain Logicub today!
Click on the images to enlarge.
